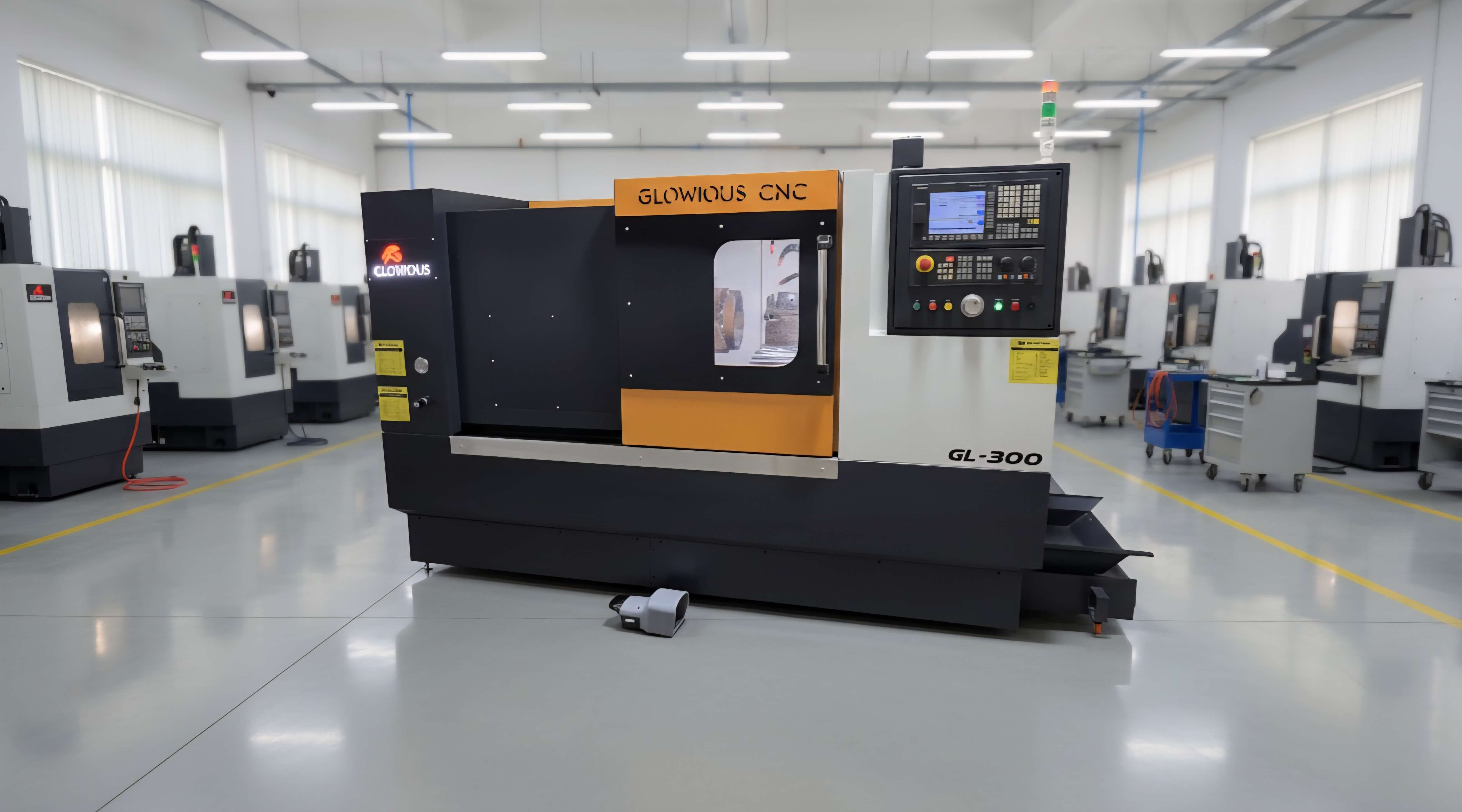

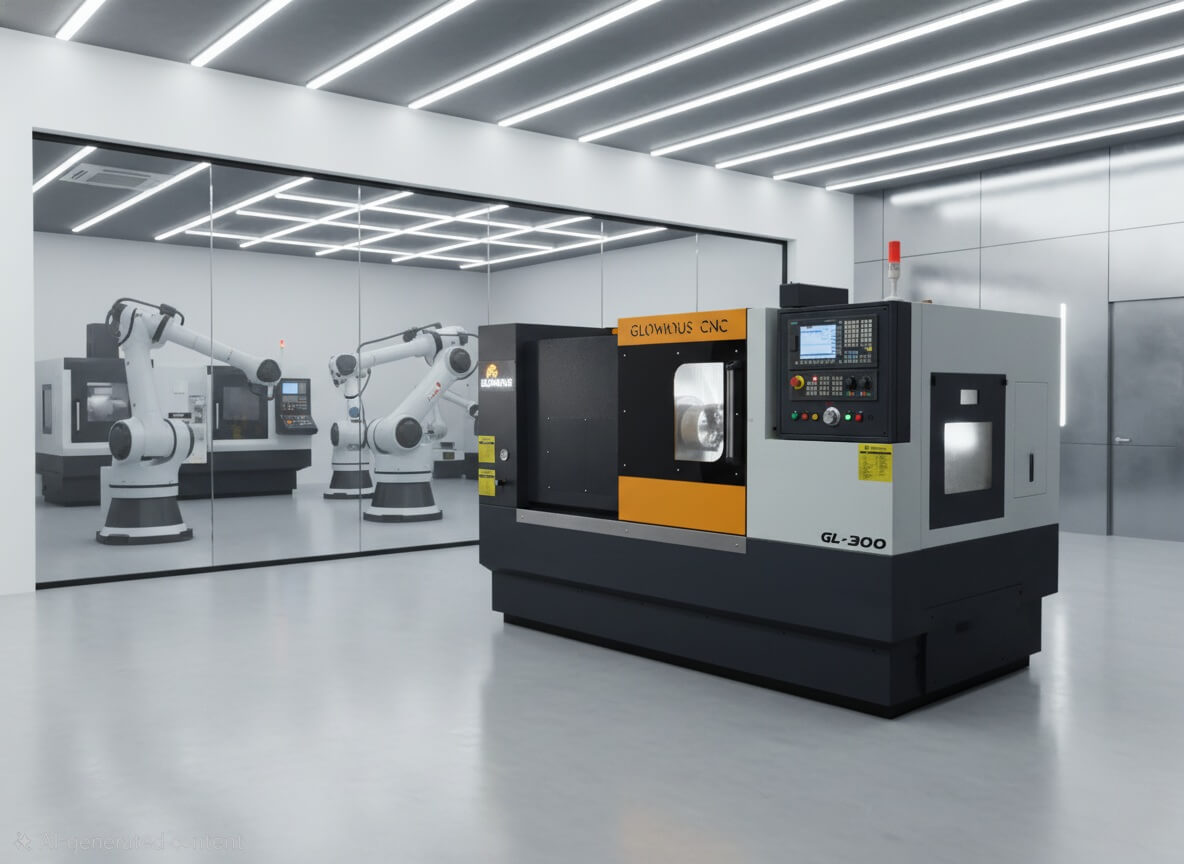

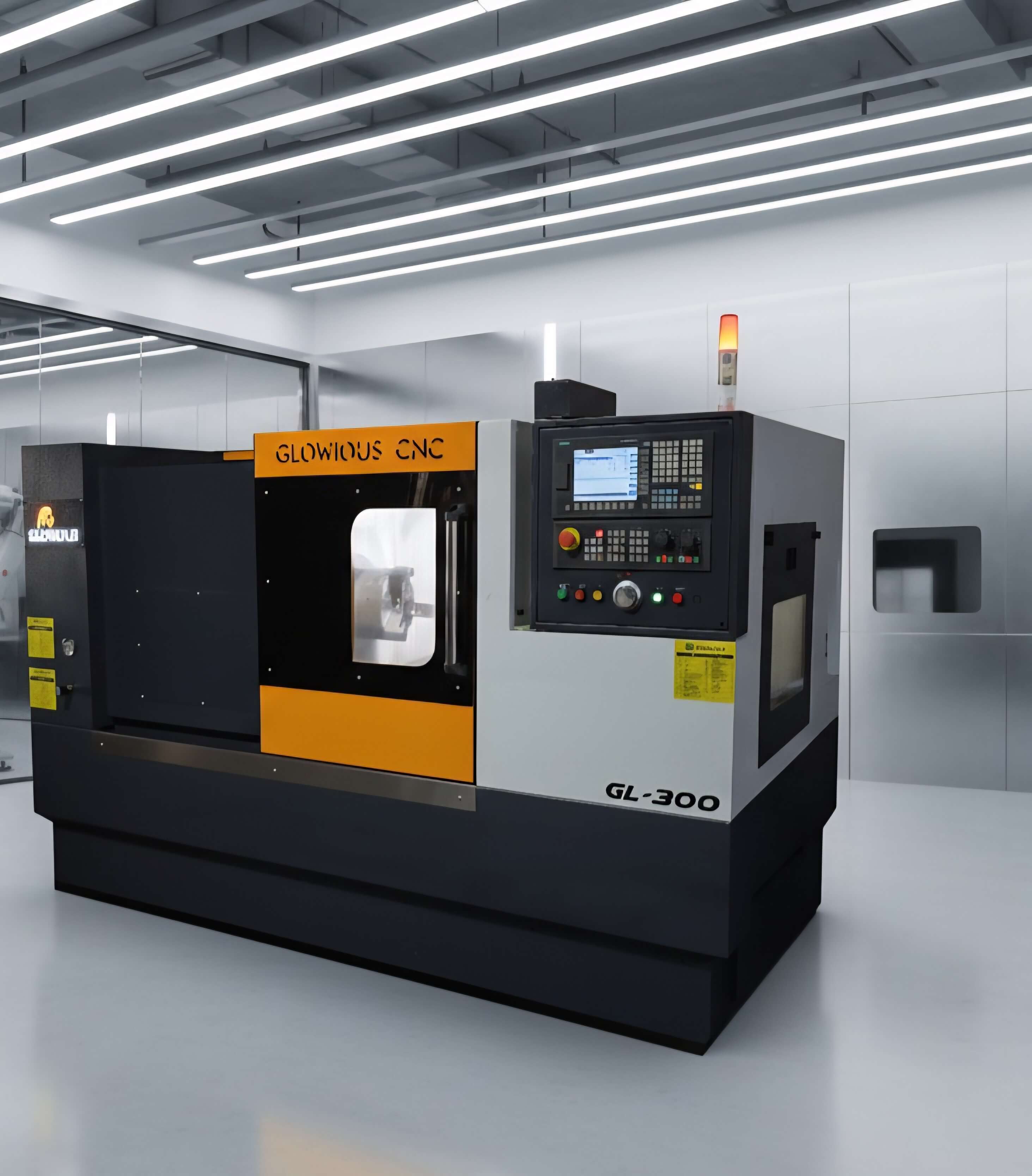

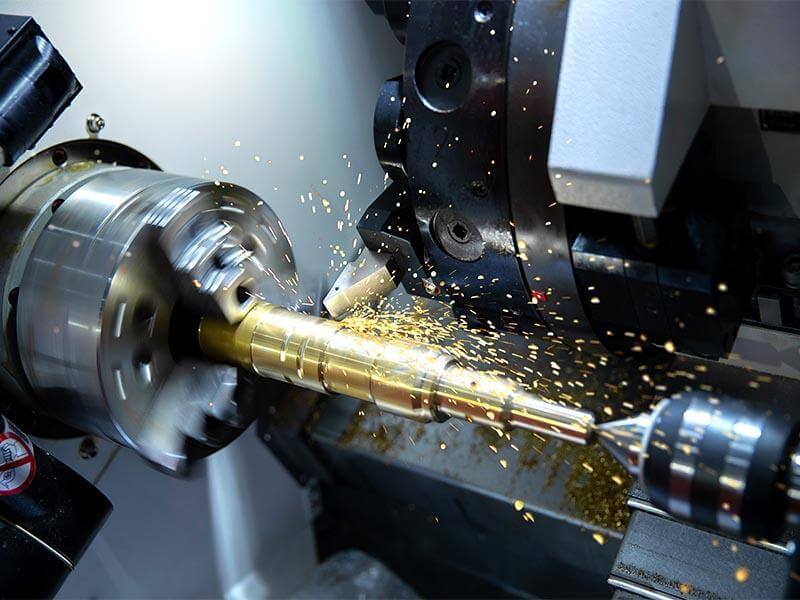

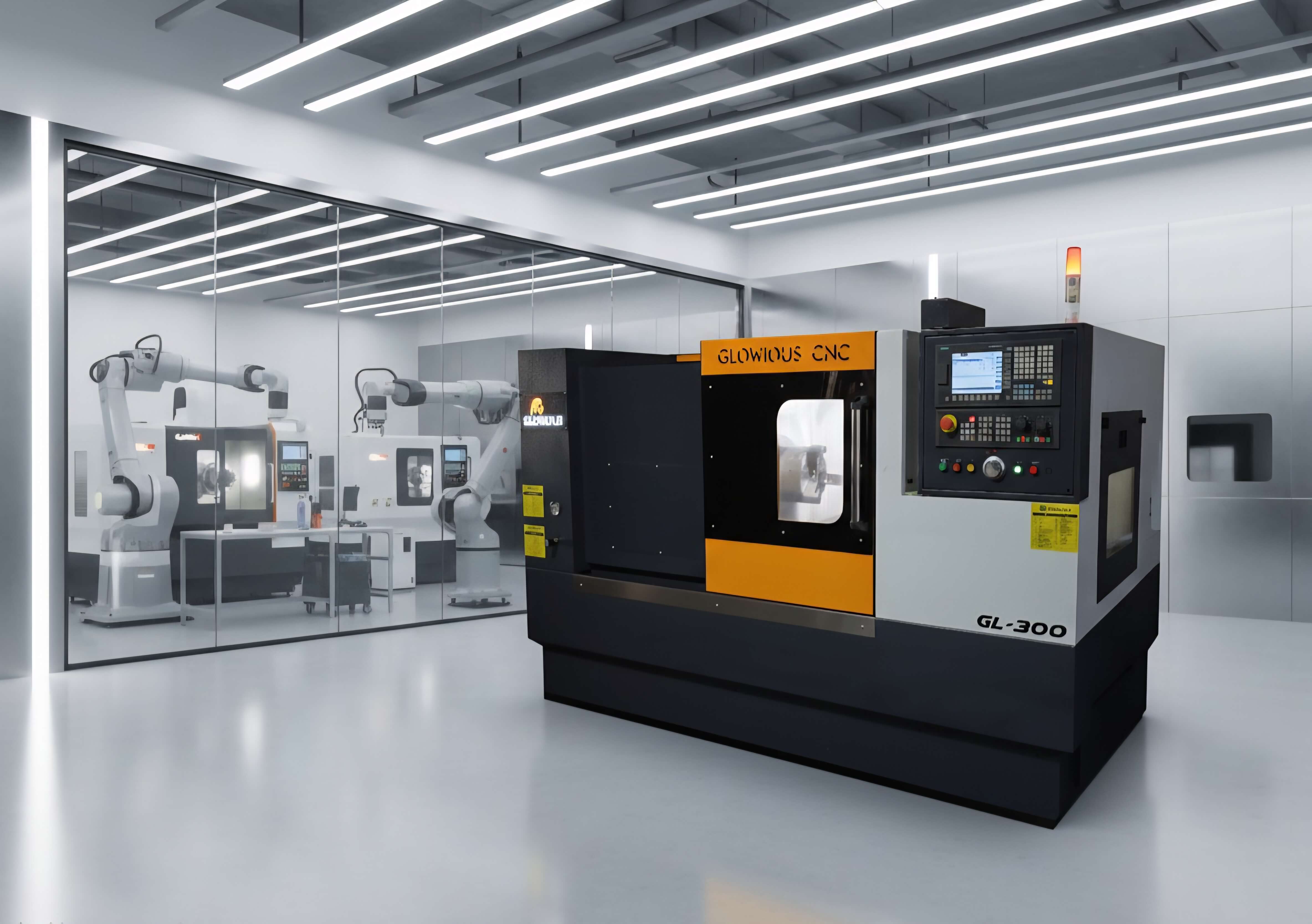

| Model Name | ICP 200A | ICP 300A | ICP 300B | ICP 400A | ICP 400B | ICP 500 | ICP 600 | ICP 800 |
|---|---|---|---|---|---|---|---|---|
| Siemens / Fanuc / Mitsubishi | ||||||||
| Chuck Size | 200 | 250 | 250 | 315 | 315 | 315 | 500 | 630 |
|---|---|---|---|---|---|---|---|---|
| Standard Turning Diameter mm | 200 | 300 | 300 | 400 | 400 | 500 | 600 | 800 |
| Maximum Turning Diameter mm | 350 | 400 | 400 | 500 | 500 | 600 | 700 | 900 |
| Maximum Turning Length mm | 500 | 500 | 700 | 500 | 700 | 700 | 600 | 800 |
| Max. Job Crossover Slide mm | 250 | 250 | 250 | 300 | 300 | 425 | 550 | 750 |
| Spindle Nose | As per our design | |||||||
|---|---|---|---|---|---|---|---|---|
| Spindle Speed Range rpm | 1500 | 1200 | 1200 | 800 | 800 | 800 | 600 | 600 |
| Spindle Motor Power (Ind. / Servo) kW / hp | 7.35 / 10 | 11 / 15 | 11x15 | 14.7 / 20 | 14.7 / 20 | 18.3 / 25 | 22 / 30 | 22 / 30 |
| X-Axis Stroke mm | 250 | 275 | 275 | 275 | 275 | 375 | 400 | 500 |
|---|---|---|---|---|---|---|---|---|
| Z-Axis Stroke mm | 500 | 500 | 700 | 500 | 700 | 700 | 600 | 800 |
| Feed Drive (X & Z) | 6/6 | 6/6 | 6/6 | 6/8 | 6/8 | 8/8 | 22/22 | 22/22 |
| Ball Screw Dia & Pitch (Z/X) mm | 32x10 / 25x10 | 32x10 / 25x10 | 32x10 / 25x10 | 32x10 / 25x10 | 32x10 / 25x10 | 40x10 / 32x10 | 40x10 / 50x10 | 40x10 / 50x10 |
| No. of Station (Std.) | - | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
|---|---|---|---|---|---|---|---|---|
| Max. Boring Bar Diameter mm | 40 | 40 | 40 | 40 | 40 | 40 | 50 | 50 |
| Max. Boring Bar (Tool) mm | 25x25 | 25x25 | 25x25 | 25x25 | 25x25 | 25x25 | 25x25 | 32x32 |
| Quill Dia mm | - | - | 70 | - | 70/100 | 100 | 125 | 125 |
|---|---|---|---|---|---|---|---|---|
| Quill Stroke mm | - | - | 125 | - | 125 | 125 | 150 | 150 |
| Max. Spindle Nose Runout mm | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 |
|---|---|---|---|---|---|---|---|---|
| Repeatability mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.010 | 0.010 |
| Positioning mm | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.050 | 0.050 | 0.030 |
| Machine Weight (Approx) kg | 2400 | 2800 | 3200 | 3000 | 3400 | 3800 | 5200 | 6200 |
|---|---|---|---|---|---|---|---|---|
| Length (Approx) mm | 2490 | 2490 | 3290 | 2490 | 3200 | 3200 | 3600 | 3800 |
| Width (Approx) mm | 1900 | 1900 | 1900 | 1900 | 1900 | 2000 | 2400 | 2400 |
| Height (Approx) mm | 1520 | 1520 | 1520 | 1520 | 1520 | 1750 | 2000 | 2000 |
OPTIONAL ACCESSORIES
Hollow Chuck (Hydraulic/Manual) Steady Rest(manual/hydraulic)
8/12 Station Tool Turret Stabilizer
Hole In Spindle Available Servo Motor In Spindle
Turning Length As Per Requirement Manual/hydraulic Tailstock
Lm Guideways Available External & Internal Grinding Attachment
